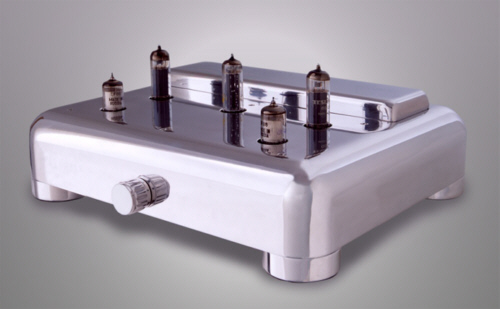

4.5SE.

The following section describes the 4.5 SE s basic specifications. Specifications subject to change without notice or obligation. -Circuit type......Single Ended- Input Sensitivity.....750 mV for full output- Power Output.......3.0 Watts triode/4.5 watts pentode-Total Harmonic Distortion........-3% @ Max output (output tube dependent)- Input Impedance.........100K ohms- Hum and Noise............1 mV- Frequency Response..........9Hz-35kHz (-3dB), 20Hz-20kHz ( -0.2 dB)- Tube compliment.................1-EF86 driver, 1-EL84 output- Transformers.............1-Toroid core power transformer 1-Sowter EI laminated core SE output transformer- Resistors..............1% Metal film, 5% Metal oxide power resistors- Capacitors.......................Specially selected to maintian low distortion.- AC Power requirements.......... 120/220 Volts (Selectable at rear apron)- Warm-up time..............5 minutes- Finish.............Polished Aluminum- Output Impedance...........2, 4, 8 ohm. Factory preset at 8 ohms, selectable by changing transformer taps.

Email Friend Price: $2,495.00
